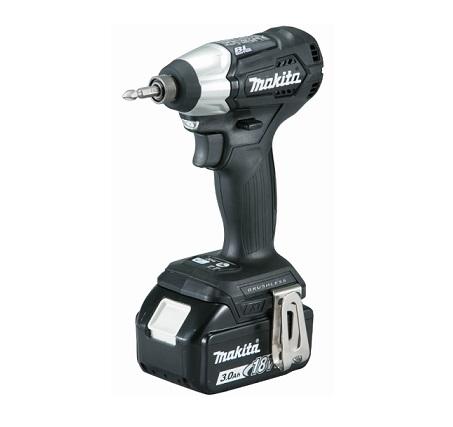

DTD155 Cordless Impact Driver

DTD155 Cordless Impact Driver

About the Product

3-mode operation for A-mode / Hard mode / Soft mode for multiple applications.
A-mode allows for easy driving screws with good control, eliminating “screw cam-out” and “cross threading” by driving at low speed until tightening start.
2-speed power selection switch (0-1,600 / 0-3,900 RPM & 0-1,300 / 0-3,000 IPM) provides the user with precise fastening control for a wide range of applications.
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge.

Standard Equipment

Belt Clip, Fast Charger, Battery Cartridge

Standard Accessories

DTD155RTE: Rapid Charger (DC18RC), 2X18V-5.0Ah Batteries (BL1850B)
DTD155RFEB: Rapid Charger (DC18RC), 2X18V-3.0Ah Batteries (BL1830B)
DTD155ZB: Bare Tool

Download File

DTD155_Manual

Product Enquiry

Technical Specifications

Description

CapacityMachine Screw: M4 - M8 (5/32" - 5/16")
Standard Bolt: M5 - M16 (3/16" - 5/8")
High tensile bolt : M5 - M12 (3/16" - 1/2")
Coarse thread (in length): 22 - 90mm (7/8" - 3-1/2")
Impacts Per Minute (IPM)High / Low: 0 - 3,000 / 0 - 1,300
No load speed (rpm)High / Low: 0 - 3,900 / 0 - 1,600
Max. fastening torque135 N·m (1,200 in.lbs.)
Dimensions (L x W x H)135x79x232mm
Driving shank6.35mm (1/4")
Net weight 1.2 kg (2.6 lbs)
