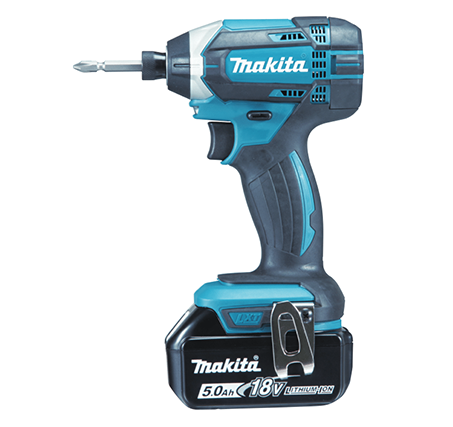

DTD152 Cordless Impact Driver

About the Product

  • Developed for main applications such as tightening of self-drilling screws or light duty machine screws.
  • High rotational speed: 2,900 rpm
  • Compact and lightweight design.
  • Rigid aluminum hammer case.
  • One-touch bit installation; No need to pull bit sleeve for bit installation (for some countries only).
  • Twin LED Job light with preglow and afterglow functions illuminates more widely compared with single LED Job light, while maintaining brightness

Standard Equipment

  • Belt Clip, Fast Charger, Battery Cartridge

Standard Accessories

  • DTD152RTE: Rapid Charger (DC18RC), 2X18V-5.0Ah Batteries (BL1850B)
  • DTD152RFE: Rapid Charger (DC18RC), 2X18V-3.0Ah Batteries (BL1830B)
  • DTD152Z : Bare Tool

Download File

Description

  • CapacityMachine Screw: M4 - M8 (5/32" - 5/16")
  • Standard Bolt: M5 - M16 (3/16" - 5/8")
  • High strength bolt : M5 - M12 (3/16" - 1/2")
  • Coarse thread (in length): 22 - 125mm (7/8" - 4-7/8")
  • Impacts Per Minute (IPM)0 - 3,500
  • No load speed (rpm)0 – 2,900
  • Max. fastening torque165N.m
  • Dimensions (L x W x H)137x79x220mm
  • Driving shank6.35mm (1/4")span>
  • Net weight 1.3kg (2.8lbs)
