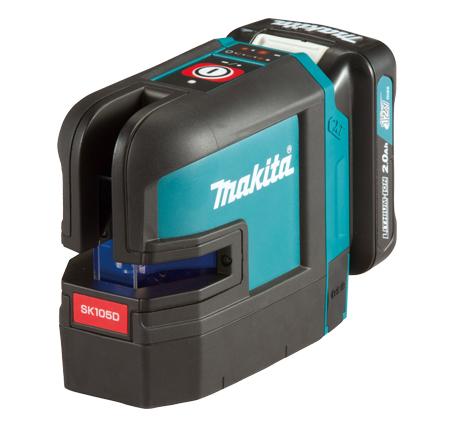

SK105DZ Rechargeable Red Cross Line Laser

SK105DZ Rechargeable Red Cross Line Laser

About the Product

External Power Supply Jack for LXT Battery Use
High brightness green laser for increased visibility at bright site
Up to 21 hours of continuous illumination in high visibility mode with BL1041B
Line visibility range up to 35 m
Pendulum lock enables slope incline applications for increased versatility; Offers added protection of laser diode during transport and storage

Standard Equipment

Soft bag, Adapter, Target plate, Z: Battery and Charger are sold separately

Standard Accessories

SK105GDZ: Bare Tool, SK105DZ: Bare Tool

Product Enquiry

Technical Specifications

Description

Measuring rangeUp to: 35 m
Leveling accuracy±3 mm / 10 m
Self-leveling range°4±
Laser fan angleHorizontal: 180°
Vertical: 160°span>
Number of laser lines: 2
Laser type: Laser class 2: 525nm
Operating temperature: -10 - 50 °C
Tripod thread: 1/4" / 5/8"
Operating Time (Approx. Hours): 7 - 20
Dimensions (L x W x H): w/ BL1016/BL1021B 1138x64x102 mm (5-7/16"x2-1/2"x4")
Dimensions (L x W x H): w/ BL1041B 157x64x102 mm (6-3/16"x2-1/2"x4")
Net weight 0.67 - 0.84 kg (1.5 - 1.9 lbs.)
