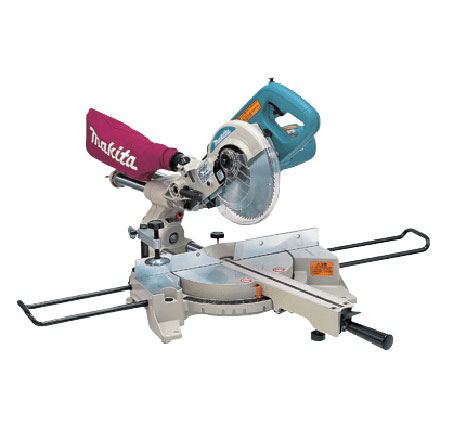

LS0714 Slide Compound Saw

About the Product

  • Double sliding mechanism makes it lighter and more compact, requiring smaller work space, allowing quick storing and easy transport.
  • Max cutting capacity 300mm (width) (11-3/4″).
  • Use of short steel poles as 4 rails protects the rails from bending for precision cutting.
  • All the four rails ride on a linear ball bearing dual sliding of saw head

Standard Equipment

  • T.C.T Saw Blade, Socket Wrench, Dust Bag, Holder Set, Vise Assembly, Triangular Rule

Download File

Description

  • Continuous rating input1,010W
  • Capacityat 0 degrees:
  • 52 x 300mm (2-1/16”x11-3/4”)
  • at 45 degrees:
  • 52 x 212mm (2-1/16”x8-3/8”)
  • Blade diameter190mm (7-1/2”)
  • No load speed (rpm)6,000
  • Dimensions 670 x 430 x 458mm
  • (26-3/8”x 17”x 18”)
  • Net weight 12.8kg (28.2lbs)
  • Power supply cord 2.5m (8.2ft)
