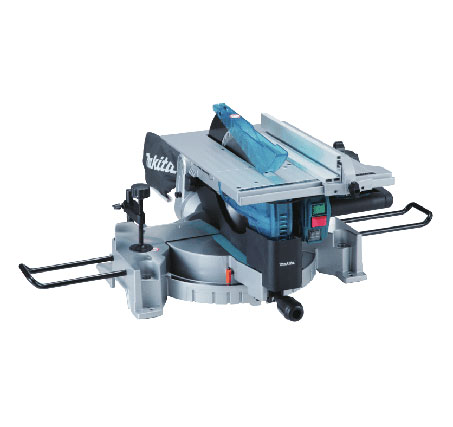

LH1201FL Table Top Miter Saw

About the Product

  • Able to cut two layers of 192mm x thickness 23mm wood floorings in a single stroke.
  • Sturdy cast aluminum table
  • Laser marker allows for easy ink line alignment.
  • 4 LED job lights provides a clear view of ink line even in dark places when the tool is used as a miter saw.

Standard Equipment

  • Carbide-tipped saw blade, Vertical vise, Dust bag, Guide rule, Ring, Triangular rule, Push stick, Blade cover, Socket wrench, Holder set

Download File

Description

  • Continuous rating input1,650W
  • Max cutting capacityat 0 degrees:
  • 95 x 155mm (3-3/4”x 6-1/8”)
  • at 45 degrees:
  • 64 x 155mm (2-1/2”x 6-1/8”)
  • Blade diameter305mm (12")
  • No load speed (rpm)3,800
  • Dimensions 610 x 535 x 692mm
  • Net weight 20.7kg (45.6lbs)
  • Power supply cord 2.5m (8.2ft)
