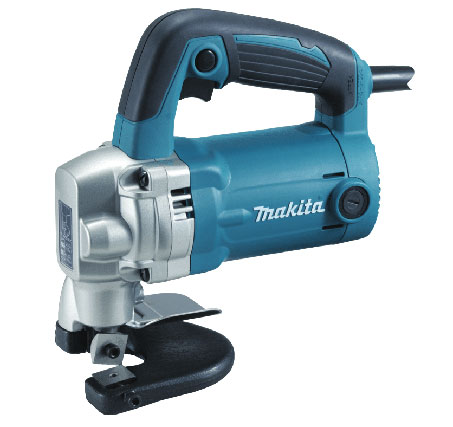

JS3201J Metal Shear
About the Product
- Robust design with elastomer coated handle provides easy operation.
- Protector equipped under the body prevents from scratching by metal cutting piece, and enables smooth cutting.
- Common blade with JS3200.
- On-tool storage for Hex wrench.
Standard Equipment
- Shear Blades Set, Hex Wrench, Thickness Gauge
Download File
Description
- Continuous rating input71W
- Capacity Steel up to 400 N/mm² : 3.2mm
- Steel up to 600 N/mm² : 2.5mm
- Steel up to 800 N/mm² : 1.5mm
- Aluminum up to 200N/mm² : 4.0mm
- Min. cutting radius50mm (2")
- Strokes per minute (spm) 1,600
- Dimensions213 x 90 x 239mm
- (L x W x H)(8-3/8”x 3-1/2”x 9-3/8”)
- Net weight3.4kg (7.4lbs)
- Power supply cord 2.5m (8.2ft)
