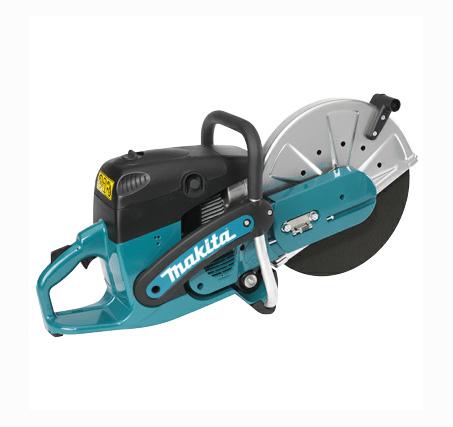

EK7301 Power Cutter
About the Product
- Powerful and compact design power cutter.
- Easy and time-saving cutting even though hardest materials.
- Multi-functional switch lever : Choke, half throttle, and stopping can be controlled by a single switch lever.
- More efficient engine cooling : Obtained by using starter cover with bigger air intake area and new flywheel.
- Carburetor : Diaphragm type, Starter system : Recoil
- SLR muffler in compliance with all known exhaust emission regulations without using catalytic converter.
Download File
Description
- Wheel diameter355mm (14”)
- Engine73mL
- Max. cutting depth122mm (4-13/16”)
- Circumferential speed80m/s
- Engine power4.2kW/ 5.7PS
- Fuel mixture50 : 1
- Fuel tank1.1L
- Sound pressure level100,3dB(A))
- Sound power level109,6dB(A)
- Vibration level Front handle7,8m/s²²
- Vibration level Rear handle6,1m/s²
- Overall length770mm (30-1/4”)
- Net weight10.1kg (22.2lbs)
