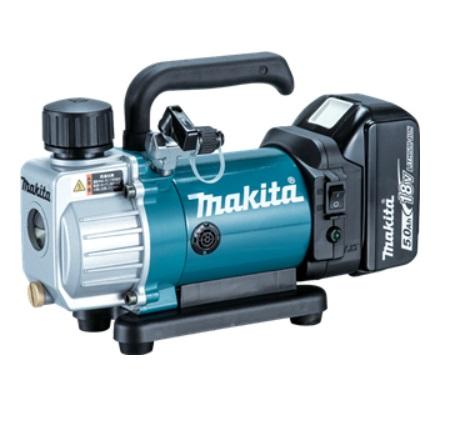

DVP180 Cordless Vacuum Pump

About the Product

  • Cordless vacuum pump for air purge during installation of room air conditioner.
  • Removes all air from refrigerant tubing to create a vacuum environment before the tubing is charged with refrigerant gas.
  • Long run time of 50 minutes with a fully charged BL1850.
  • Compression type: Oil rotary type (vane type), Single stage.
  • Easy to carry with a compact and lightweight body.
  • Built-in metal mesh filter prevents vacuum pump oil from scattering from exhaust port.
  • Drain port with valve allows for easy change of vacuum oil pump.
  • Valve prevents securely oil back flow.

Standard Equipment

  • Vacuum Pump Oil, Battery, Charger, Z: Battery and Charger are sold separately

Standard Accessories

  • DVP180RT: Rapid Charger (DC18RC), 2X18V-5.0Ah Batteries (BL1850B)
  • DVP180Z: Bare Tool

Download File

Description

  • Compression typeOil rotary type (vane type), Single stage
  • Flow rate50 L/min
  • Ultimate vacuum20 Pa (150 microns)
  • Motor speed3,840 min-1
  • Oil capacity115 mL
  • Dimensions (L x W x H) 65x93x175mm
  • Net weight 2.9kg (without battery)
