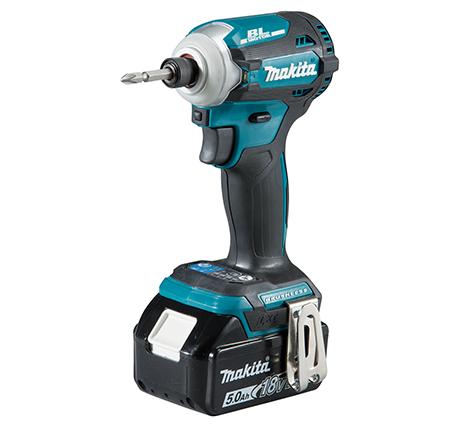

DTD171 Cordless Impact Driver

About the Product

ULTRA-COMPACT and perfect balance at only 116 mm long for maximum control and maneuverability
Redesigned mode selection switch for one-handed mode selection
Dual LED lights on both sides illuminate the work area for increased visibility

Standard Equipment

Phillips Bit, Belt Clip, Battery, Charger

Standard Accessories

DTD171RFJ: Rapid Charger (DC18RC), 2X18V-3.0Ah Batteries (BL1830B), Makpac
DTD171RTJ: Rapid Charger (DC18RC), 2X18V-5.0Ah Batteries (BL1850B), Makpac
DTD171Z: Bare Tool

Download File

Product Enquiry

Technical Specifications

Description

CapacityMachine Screw: M4 - M8 (5/32" - 5/16")
Standard Bolt: M5 - M16 (3/16" - 5/8")
High Tensile Bolt: M5 - M14 (3/16" - 9/16")
Coarse thread (in length): 22 - 125 mm (7/8" - 4-7/8")
Hex Shank6.35 mm (1/4")
No Load Speed (rpm)Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode: 0 - 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600
Impacts Per Minute (IPM)Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode: 0 - 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / N/A / 2,600
Max. fastening torque180 N·m (1,590 in.lbs.)
Fastening TorqueHard / Med / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Max Output290W
Dimensions (L x W x H)w/ BL1815N / BL1820B: 116x79x218 mm (4-9/16"x3-1/8"x8-5/8")
Net weight 1.2 - 1.6 kg
