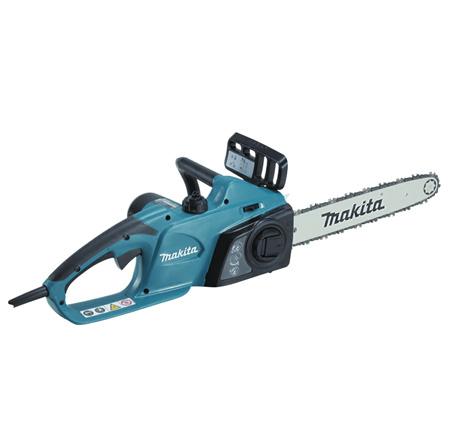

UC3541A Chain Saw
About the Product
- Transverse motor allows for use of simple spur gear mechanism, providing high transmission durability.
Download File
Description
- Continuous rating Input1,800W
- Chain speed per minute870m (2,900ft)
- Guide bar lengthUC3541A / UC4041A: 350mm (14”), 400mm (16”)
- Saw ChainPitch: 3/8”
- Gauge: 1.1mm (0.043“) /1.3mm (0.050”)
- Sound presure level90.3dB (A)
- Sound power level 101.3dB (A)
- Vibration level 4.7m/s2
- Dimensions (L x W x H) 4455 x 245 x 200mm
- Net weightUC3541A / UC4041A: 4.7kg (10.3lbs) / 4.8kg (10.5lbs)
